Building a net-zero home means achieving a delicate balance between energy consumption and renewable energy production. At the heart of this balance lies the need for exceptional insulation. Understanding insulation requirements for net-zero homes is essential for anyone aiming to construct or retrofit a residence that truly minimizes energy waste and maximizes comfort year-round.
Proper insulation not only reduces the demand for heating and cooling but also supports other efficiency strategies, such as airtight construction and high-performance windows. By focusing on the right materials, installation techniques, and standards, homeowners and builders can create living spaces that are both sustainable and cost-effective over the long term.
For a deeper dive into the materials that make these homes possible, see energy efficient materials net-zero homes, which explores the top product choices for sustainable construction.
Why Insulation Matters in Net-Zero Construction
In a high-performance home, insulation acts as the primary barrier against unwanted heat transfer. Without adequate insulation, even the most advanced renewable energy systems will struggle to keep up with demand. The insulation requirements for net-zero homes are far more stringent than those for conventional buildings, focusing on minimizing thermal bridging and air leakage at every stage.
Effective insulation strategies help:
- Reduce heating and cooling loads
- Maintain consistent indoor temperatures
- Prevent moisture issues and condensation
- Support healthy indoor air quality
- Lower long-term energy bills
When combined with airtight construction, as discussed in airtight building net-zero construction, insulation forms the backbone of a truly efficient building envelope.
Key Standards and Guidelines for Net-Zero Insulation
Several industry standards guide the insulation approach for ultra-efficient homes. While local codes set minimum requirements, net-zero projects typically exceed these benchmarks. The most recognized frameworks include:
- Passive House (PHIUS/PHI): Sets rigorous limits on annual heating and cooling demand, requiring high R-values and continuous insulation.
- Zero Energy Ready Home (ZERH): A U.S. Department of Energy program that mandates advanced envelope measures, including insulation levels above code.
- ENERGY STAR for Homes: Encourages insulation that meets or exceeds International Energy Conservation Code (IECC) standards.
While each program has unique criteria, all emphasize:
- Continuous insulation across all building surfaces
- Minimizing gaps, voids, and thermal bridges
- Careful attention to installation quality
Consulting with an energy modeler or building scientist can help tailor these guidelines to your specific climate and design. For more on this process, visit energy modeling net-zero homes.
Recommended R-Values by Climate Zone
One of the most important metrics in insulation is the R-value, which measures resistance to heat flow. The higher the R-value, the more effective the insulation. For net-zero projects, recommended R-values are typically much higher than standard code requirements. Below is a general guide for U.S. climate zones:
| Building Component | Cold Climates (Zones 6-8) | Mixed/Temperate (Zones 4-5) | Warm Climates (Zones 1-3) |
|---|---|---|---|
| Attic/Ceiling | R-60+ | R-49–60 | R-38–49 |
| Walls (Above Grade) | R-40–60 | R-30–40 | R-19–30 |
| Floors | R-30–40 | R-19–30 | R-13–19 |
| Basement Walls | R-20–30 | R-15–20 | R-10–15 |
| Slab Edge | R-10–20 | R-10–15 | R-5–10 |
These values are starting points; actual requirements may vary based on home design, orientation, and local conditions. For best results, work with a professional familiar with insulation requirements for net-zero homes in your region.
Choosing the Right Insulation Materials
The effectiveness of your building envelope depends not just on R-values, but on the type and placement of insulation. Common options for net-zero homes include:
- Spray Foam: Offers high R-values and air sealing in one application, ideal for complex framing or hard-to-reach areas.
- Rigid Foam Boards: Provide continuous insulation and are often used on exterior walls and foundations.
- Mineral Wool: Fire-resistant and moisture-tolerant, suitable for walls, attics, and floors.
- Cellulose: Made from recycled materials, effective for dense-pack wall cavities and attics.
- Fiberglass: Cost-effective and widely available, but requires careful installation to avoid gaps.
Each material has unique properties, so selection should be based on climate, budget, and sustainability goals. For a detailed look at material performance, refer to energy efficient materials net-zero homes.
Installation Best Practices for Maximum Efficiency
Even the best insulation will underperform if not installed correctly. To meet insulation requirements for net-zero homes, pay close attention to:
- Continuous Coverage: Insulate all areas, including rim joists, band boards, and behind electrical boxes.
- Thermal Bridging: Use continuous exterior insulation to prevent heat loss through framing members.
- Air Sealing: Combine insulation with robust air barriers and vapor control layers to stop drafts and moisture movement.
- Quality Control: Inspect for gaps, compression, or misalignment, and use tools like thermal cameras to verify performance.
Properly installed insulation, in tandem with airtight construction, ensures that the home’s energy systems operate at peak efficiency. For more on maximizing energy savings, see energy efficiency in net-zero homes.
Integrating Insulation with Other Net-Zero Strategies
Insulation is just one piece of the net-zero puzzle. To reach true zero energy status, it must work hand-in-hand with:
- High-performance windows and doors to minimize heat loss and gain
- Mechanical ventilation with heat recovery to maintain air quality without sacrificing efficiency

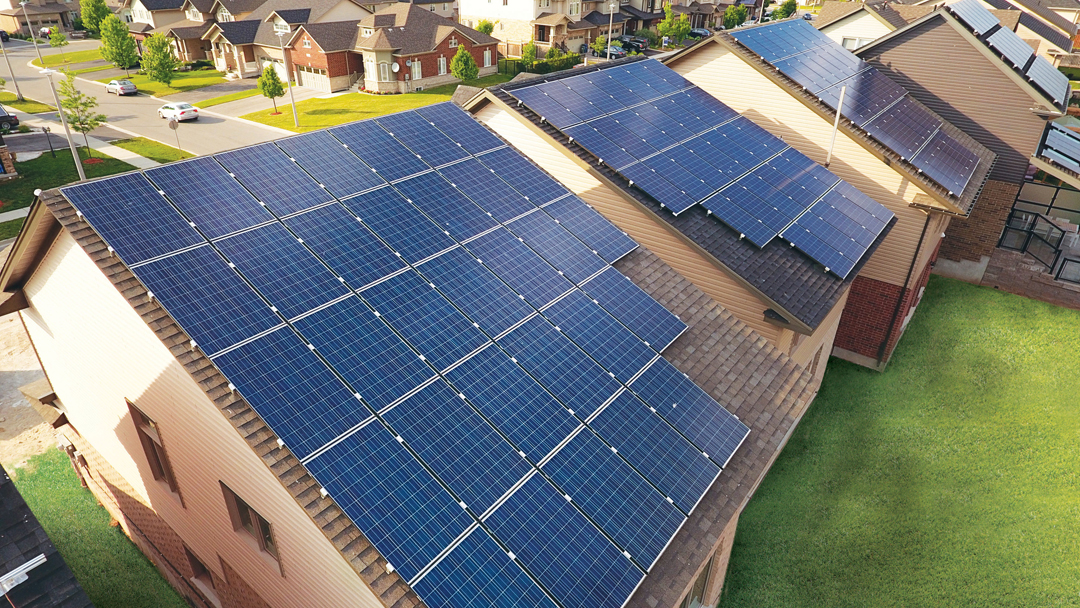

- On-site renewable energy systems such as solar panels, as described in how net-zero homes produce energy
- Smart energy monitoring to track and optimize usage
For a comprehensive overview of how these elements work together, explore this guide to net-zero home design and construction.
Common Challenges and Solutions
Meeting advanced insulation requirements for net-zero homes can present several challenges:
- Cost: High-performance insulation materials and installation can increase upfront expenses, but these are often offset by long-term energy savings.
- Complex Detailing: Ensuring continuous insulation around penetrations, corners, and transitions requires careful planning and skilled labor.
- Moisture Management: Inadequate vapor control can lead to condensation and mold. Use appropriate vapor barriers and ensure proper drainage.
- Verification: Use blower door tests and thermal imaging to confirm air tightness and insulation coverage.
Addressing these challenges early in the design and construction process is key to achieving the desired performance outcomes.
FAQ: Insulation and Net-Zero Home Performance
What makes insulation for net-zero homes different from standard construction?
Net-zero projects require higher R-values, continuous insulation, and meticulous installation to minimize heat loss and air leakage. The goal is to reduce energy demand as much as possible before adding renewable energy systems.
How do I know if my insulation is performing as intended?
Performance can be verified through blower door testing for air leakage and thermal imaging to spot gaps or cold spots. These tools help ensure the building envelope meets design targets.
Can I retrofit an existing home to meet net-zero insulation standards?
Yes, but it often involves adding exterior insulation, upgrading attic and basement insulation, and improving air sealing. While more challenging than new construction, retrofits can significantly improve efficiency and comfort.
Are there incentives for upgrading insulation to net-zero levels?
Many regions offer rebates, tax credits, or low-interest loans for energy efficiency upgrades, including insulation. Check with local utilities and government programs for available incentives.
Conclusion
Achieving net-zero energy performance starts with a robust, well-designed insulation strategy. By exceeding minimum code requirements, choosing the right materials, and focusing on quality installation, homeowners can enjoy lower utility bills, improved comfort, and a reduced environmental footprint. When combined with airtight construction, efficient systems, and renewable energy, high-performance insulation is the foundation of a truly sustainable home.
